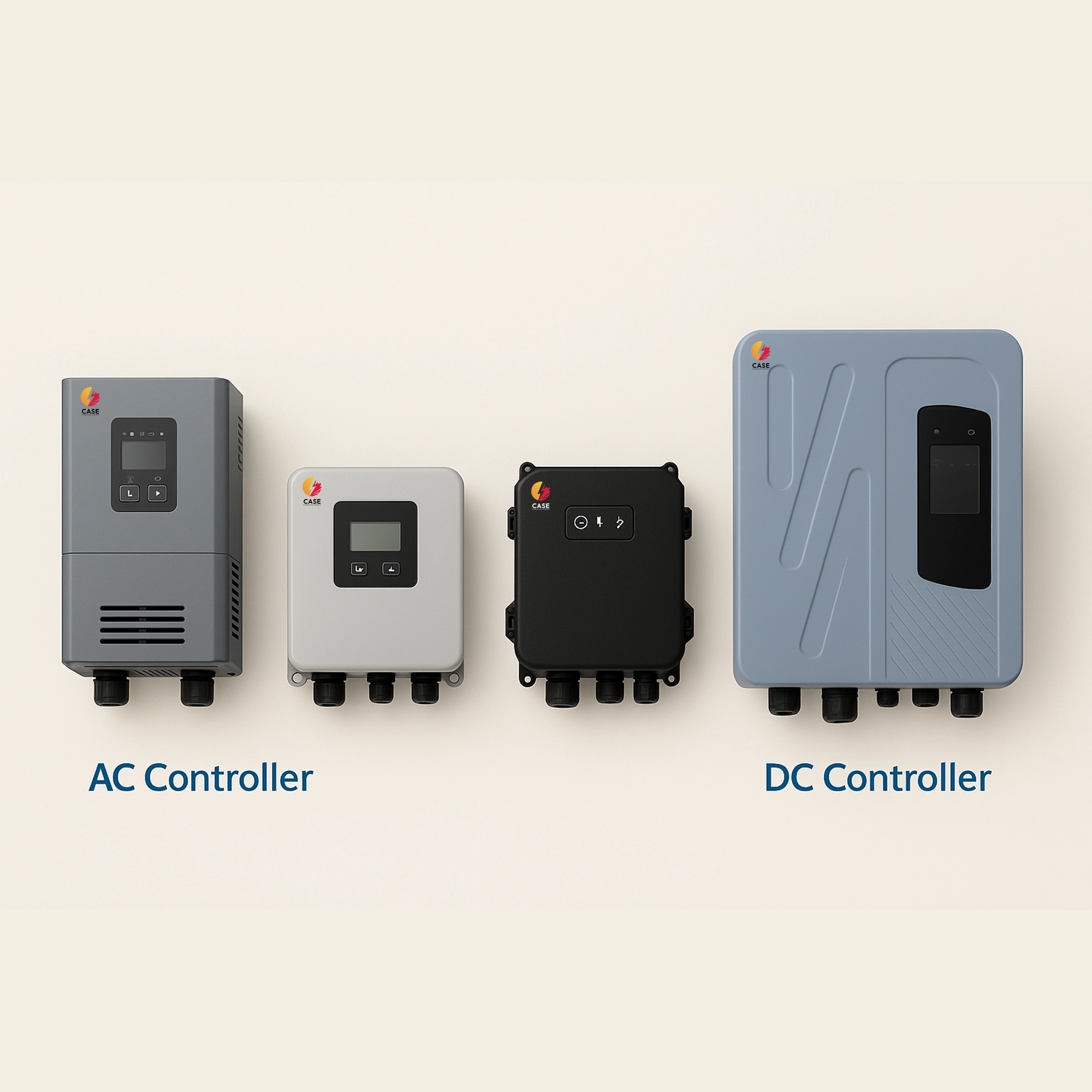

AC & DC Controller
Precision controllers to manage both AC and DC circuits, ensuring optimal energy flow from solar panels to your home or business systems. They help prevent overcharging and maintain the health of your batteries.
Technical Specification
- Note: The technical specification may vary based on the specific requirements of the project.
Photovoltaic Modules:
- Type: Polycrystalline or Monocrystalline
- Peak Power Output: 250W to 340W
- Number of Cells: 60 or 72
- Dimensions: 1580mm x 808mm x 40mm
Inverter:
- Type: Grid-Tied or Off-Grid
- Power Output: 2.5kW to 5kW
- Efficiency: 97%
- Operating Voltage: 230VAC
Mounting System:
- Type: Roof or Ground
- Material: Aluminum or Steel
- Maximum Wind Load: 60 mph
- Snow Load: 30 lbs/sq ft
Wiring and Cabling:
- Type: MC4 Connectors
- Cable Size: 4mm2 to 6mm2
- Maximum Operating Temperature: 90°C
Batteries:
- Type: Lead-Acid or Lithium-Ion
- Capacity: 12V to 48V
- Maximum Charge/Discharge Current: 100A
Monitoring System:
- Type: Web-Based or App-Based
- Real-time Data Monitoring: Available
- Historical Data Analysis: Available
